Description

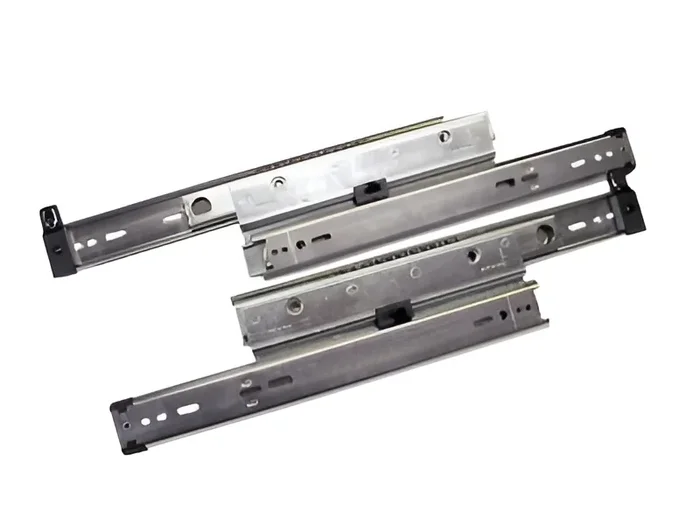

Knape & Vogt 8505P 18 18″ Full Extension Slide with Overtravel
KNAPE & VOGT 8505P 18 18in Full Ext Slide W/Overtravel is the perfect solution for box drawer or pedestal file drawers, accommodating widths of up to 30 inches. This heavy-duty slide offers robust performance with its progressive 1-1/2 inch overtravel feature, ensuring that drawers open fully for easy access to contents. The slide is side-mounted, allowing for a precise fit with a tolerance of 1/2 inch plus 1/32 inch minus 0 on each side. Crafted from electro zinc-plated and lacquered cold-rolled steel, this slide is built to withstand daily use while maintaining a sleek appearance. The action relies on precision steel ball bearings, with three ball bearings per inch of race, offering smooth and reliable operation. Notable features include a 32mm hole pattern for system mounting, factory-attached drawer release clips for quick disconnect, a hold-in feature to prevent bounce back, and positive in/out stops for added safety. With a weight of 5.5 lbs, this slide is designed for easy installation and comes with screws included. Proudly made in the USA, the KNAPE & VOGT 8505P is a dependable choice for anyone looking to enhance the functionality of their cabinetry.
18in Full Ext Slide W/Overtravel
18in Full Ext Slide W/Overtravel
Designed for box drawer or pedestal file drawers up to 30″ wide. 12″ to 30″ Full Extension Slide W/Overtravel
- Action: Heavy duty progressive full extension on precision steel ball bearing. 3 ball bearings per inch of race
- Stay close feature
- Hold-in feature to prevent bounce back
- Features: 32mm hole pattern for system mounting
- Material: Electro zinc-plated and lacquered cold rolled steel
- Positive in/out stops
- Progressive 1-1/2″ Overtravel
- Side Mounted -1/2″ plus 1/32″ minus 0 each side
- Factory attached drawer release clips with non-handed quick disconnect drawer members
Attributes
Country of Origin: US
Length: 18
Manufacturer: KV
Monthly Special: No
Product Badges: Made in USA, Screws Included
Size: 18″
Type: Ball Bearing Slide
Weight: 5.500000
