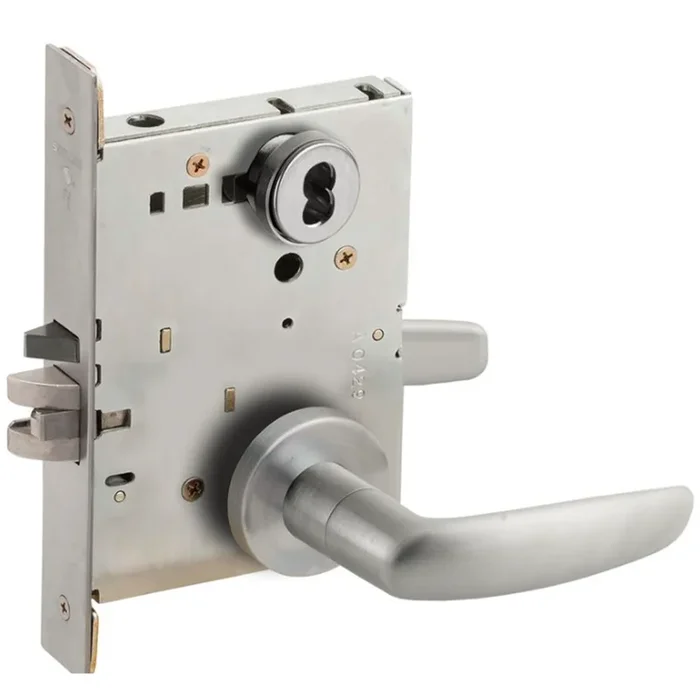

17B Classroom Mortise Lock – Small Format IC (SFIC) by Schlage

Description

Schlage L9070B17B626AM 17b Classroom Mortise Lock W/anti Microb

Latchbolt retracted by lever from either side unless outside is locked by key. Unlocked from outside by key. Inside lever always free for immediate exit.

• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Alternate Codes: L9070B17B626AM, L9070BD17B626AM, SCHL9070BD17B626AM

Antimicrobial Coating: Schlage AM Antimicrobial

Backset: 2-3/4″

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Country of Origin: Mexico

Cylinder Type: Less Core, SFIC

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Finish: 626AM/US26DAM

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish : Satin Chrome Antimicrobial Coated

Fire Rated: 3 Hours {A}

Function: Classroom

Grade: Grade 1

Lever Design: 17

Limited Warranty: 3 Years

Lock Category: Mortise Lockset – Latch Only

Rose/ Escutcheon: B Rose

Series: L Series

Subtype: Mortise Lock

Type: LOCK SETS
