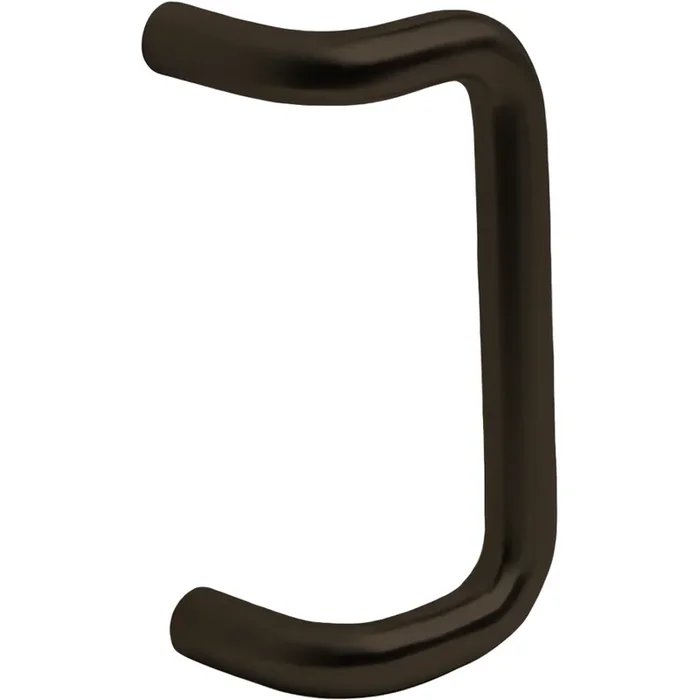

12in Offset Pull, Decorative Thru Bolt Mount – Ives Oil Rubbed Bronze

Description

Ives 8190HD-2 US10B O Pulls and Push Plates

Offset Door Pull, 90 Deg., 12″ CTC, 1″ Diameter, 2-1/2″ Clearance, Type O Mounting, Oil Rubbed Bronze

Features

• Comes standard with through bolt screws and decorative washers (STD – mount)
• 3⁄8-16 mounting hardware
• Meets ANSI/BHMA 156.06
• Certifications:
• Optional mounting hardware available (see general information section for details) A, F, I, L, N, O, P, Q, X
• Material Substrate: Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (316 Series)
• Specify door thickness: Standard mounting hardware for door thickness of 1 1⁄2″ to 1 3⁄4″ unless otherwise specified. Optional package available for 2″ and 2 1⁄4″ thick doors
• Mounting hardware for other door thicknesses are available as engineering special
• Available Sizes: 8″, 10″, 12″, 18″
• Mounting Hardware:
• Heavy duty mounting hardware exceeds industry standards

Attributes

Manufacturer surcharge: 7.0%

Alternate Codes: 8190HD-2-US10B, 8190HD2US10B, 8190HD-2 US10B O, 8190HD-2-US10B O, 8190HD2US10BO, IVE8190HD-2-O-613, IVE8190HD-2-O-US10B, IVE8190HD-2-US10B, IVE8190HD-2-US10B O

Base Material: Bronze

Category: Door Accessories, Push & Pull Plates

Commercial Residential: Commercial

Finish: 613/US10B

Finish : Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Installation: Commercial

Pack Qty: 1

Pbs Options: 13262270

Series: Ives Architectural Hardware

Subtype: Pulls and Push Plates

Type: Hinges and Pivots

Unit of Measure: Each
