1-3/4 Inch Mortise Cylinder – Corbin Russwin

Description

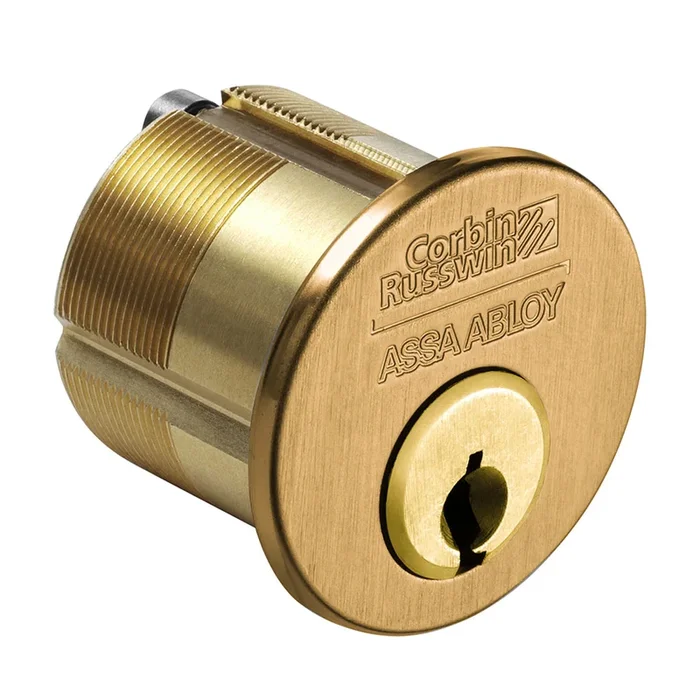

Corbin Russwin 1000-134-A02-6-A12 612 1-3/4″ Mortise Cylinder

Corbin Russwin 1000-134-A02-6-A12 612 1-3/4 Inch Mortise Cylinder offers a reliable solution for all mortise cylinder applications. Constructed from solid brass, this durable cylinder ensures longevity and resilience, making it an ideal choice for various door hardware needs. With a length of 1-3/4 inches, it features an A12 keyway and a standard straight cam design (A02), providing versatility in securing your spaces. Designed to accommodate a range of keying options, this conventional cylinder can be utilized in mortise, rim, and deadbolt applications. It comes with blank keys and is bitted at 0, ensuring custom security setups are easily achievable. The satin bronze finish (612/US10) adds an attractive touch while complementing various architectural styles. Additionally, the cylinder is BAA qualified and proudly made in the USA, reflecting high manufacturing standards. With a limited one-year warranty, you can trust in its performance over time. Weighing just 0.4 lbs, it is easy to handle and install. Whether you are a building professional or a knowledgeable homeowner, the Corbin Russwin 1000-134-A02-6-A12 Mortise Cylinder is an essential component for enhancing security in your property.

1-3/4 Inch Mortise Cylinder

1-3/4 In. Mortise Cylinder, A12 Keyway A02 Straight Cam, Satin Bronze

Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.

Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.

Attributes

Baa Qualified: Yes

Base Material: Bronze

Cam Number: A02

Cam Type: Standard Straight

Country of origin: USA

Cylinder Length: 1-3/4 In.

Finish: 612/US10

Keying: 0 Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 4″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 27.5 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2.75″

Pack Width 2: 10.5″

Pins: 6

Series: Conventional Cylinders

Ship Weight: 0.4 lbs.

Std Keyway: A12

Subtype: Mortise Cylinder

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Conventional Cylinders Cut Sheet
• Key Systems Catalog
