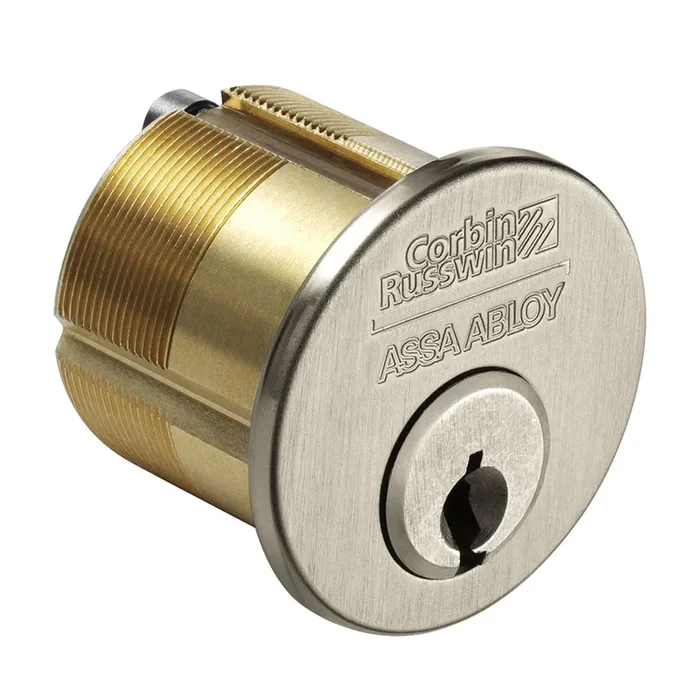

Corbin Russwin 1000-134-A04-6-59A1 630 1-3/4″ Mortise Cylinder
Corbin Russwin 1000-134-A04-6-59A1 630 1-3/4 Inch Mortise Cylinder offers a robust and secure solution for your locking needs. Crafted from durable stainless steel, this 1-3/4-inch mortise cylinder is designed for compatibility with various applications, featuring a 59A1 keyway and a Sargent cam type for reliable performance. This conventional cylinder accommodates a full range of keyways for diverse installations, including mortise, rim, and deadbolt configurations. With a pin count of 6, it ensures enhanced security while providing ease of use. The cylinder comes with 2 blank keys, allowing for tailored keying solutions to fit your specific requirements. The satin stainless steel finish not only enhances durability but also adds a sleek aesthetic to your doors. Manufactured in the USA, this product is backed by a limited 1-year warranty, ensuring quality and peace of mind. Weighing just 0.4 lbs and designed for efficient shipping, the Corbin Russwin 1000-134 is a practical choice for building professionals and knowledgeable homeowners alike.Upgrade your locking system with this high-quality mortise cylinder, engineered for both functionality and security.
1-3/4 Inch Mortise Cylinder
1-3/4 In. Mortise Cylinder, 59A1 Keyway A04 DL4000 Deadlock, Sargent Cam, Satin Stainless Steel
Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.
Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.
Attributes
Baa Qualified: Yes
Base Material: Stainless Steel
Cam Number: A04
Cam Type: Sargent, Yale
Country of origin: USA
Cylinder Length: 1-3/4 In.
Finish: 630/US32D
Keying: 0 Bitted
Keys: Blank
Limited Warranty: 1 Year
Of Keys: 2
Origin: USA
Pack Height: 2.5″
Pack Height 2: 6″
Pack Length: 4″
Pack Length 2: 16.25″
Pack Qty: 1
Pack Volume: 27.5 in³
Pack Volume 2: 1023.75 in³
Pack Width: 2.75″
Pack Width 2: 10.5″
Pins: 6
Series: Conventional Cylinders
Ship Weight: 0.4 lbs.
Std Keyway: 59A1
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 32
Resources
- Conventional Cylinders Cut Sheet
- Key Systems Catalog
