1-1/8in Backset Deadlatch – Heavy Duty with 4502 Strike and Auxiliary Linchpin

Description

Adams Rite 4900-36-201-313 Mortise Lock

Adams Rite 490036201313 Heavy Duty Deadlatch 1-1/8″ Right Hand, 2-5/8″ Flat Mortised Strike Dark Bronze Anodized Finish

• Bolt Holdback:
• While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
• Cylinder Backset:
• 31/32″, 1-1/8″, or 1-1/2″
• Case:
• Measures 7/8″ x 5-13/16″ x depth. Depth varies by backset. Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
• Latchbolt:
• 5/8″ x 1″ x 5/8″ throw. Solid brass. Handing is easily reversible using only a screwdriver.
• Auxiliary Latchpin:
• Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.

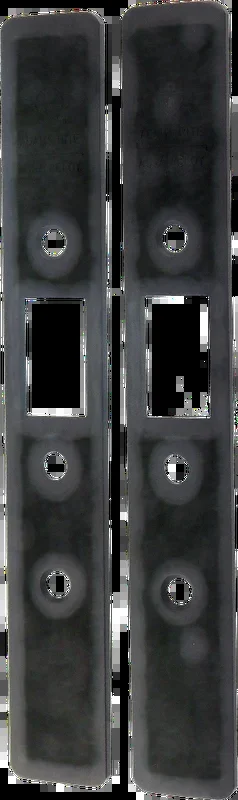

• Faceplates:
• Measures 1″ x 6-7/8″. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
• Strikes:
• Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
• Cylinder Cam:
• 4900 Heavy Duty Deadlatches are operable by any standard 1-5/32″ diameter mortise cylinder with MS® cam
• Standard Package:
• Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1/4 lbs.
• Heavy Duty Deadlatch
• Provides Flexible Traffic Control
• Easy Installation
• 1-3/4″ Minimum Door Thickness Required
• Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Attributes

Alternate Codes: 100863, 401828, 4711-36313, 471136313, 4900-36-201-313, 4900-36313, 490036201313, 490036313, ADR4510-36-313, ADR4511-35-101-313, ADR4511-35-201-313, ADR4511-36-201 313, ADR451135201313, ADR4900-36313, TH1103-1/8DUR, TH110318DUR

Baa Qualified: Yes

Backset: 1-1/8″

Base Material: Aluminum

Bolt Projection: 5/8″

Bolt Protection: 5/8″

Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Included: Adams Rite

Cylinder Type: Standard Mortise Cylinder

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4″ – 2″

Dust Box: Plastic

Faceplate Size: 6-7/8″ x 1″

Faceplate Style: Standard

Finish: Dark Bronze Anodized

Finish Code: DBZ

Finish Color: Dark Bronze

Finish : Dark Bronze Anodized Aluminum

Function: Narrow Stile Latch Lock

Grade: Grade 1

Hand: Field Reversible

Handing: Left Handed Reverse, Right Handed

Installation: Commercial

Jamb Type: Standard Jamb With Door Stop

Latch Backset Dim: 1-1/8″

Latch Bolt Throw: 5/8″

Latch Bolt Type: Deadlatch

Latch Type: Dead Latch (Guarded)

Limited Warranty: 5 Years

Lock Category: Mortise Lock

Lock Face Size: 6-7/8″ x 1″

Origin: USA

Pack Height: 2.13″

Pack Length: 8.88″

Pack Qty: 1

Pack Volume: 61.29 in³

Pack Width: 3.25″

Pbs Options: 103,719,791,039,373,000,000,000

Product Height: 1.76″

Product Length: 6.87″

Product Width: 1″

Screws: Machine

Series: 4900

Ship Weight: 1.25 lbs.

Std Latch Backset Dim: 1-1/8″

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 2-5/8″

Std Strike Number: 4902-01

Std Strike Type: Mortise

Std Strike Width: 1-9/16″

Strike: 2.625″ Flat Mortised Strike

Strike Height: 2-5/8″

Strike Included: Yes

Strike Number: 4902-01

Strike Size: 4-1/8″ x 1-1/8″

Strike Type: Mortise

Strike Width: 1-9/16″

Subtype: Latches

Type: Door Hardware Parts

Unit of Measure: Each

Upc: 888512105631
