Description

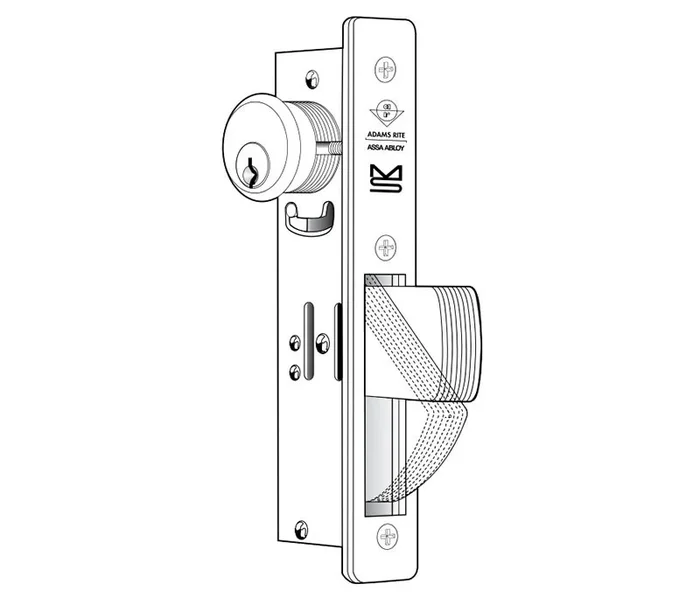

Adams Rite MS1851S-310-313 Aluminum Door Deadlocks
The MS1850S Series MS Deadlock utilizes a laminated stainless steel bolt, activated by a pivot mechanism to provide maximum security for a single leaf narrow stile door.
- Cylinder Backset: 31/32″, 1-1/8″, or 1-1/2″ only
- Case: Steel with corrosion-resistant plating, measures 1″ x 6″ x depth. Depth varies by backset.
- Bolt: 5/8″ x 1-3/8″ x 2-7/8″ with 1-3/8″ throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.
- Faceplate: Measures 1″ x 6-7/8″
- Strike: See catalog page for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.
- Cylinder Cam: MS1850S Deadlocks are operable by any standard 1-5/32″ diameter mortise cylinder with MS cam.
Features
- Faceplate: Measures 1″ x 6-7/8″
- Strike: See catalog page for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.
- Cylinder Cam: MS1850S Deadlocks are operable by any standard 1-5/32″ diameter mortise cylinder with MS cam.
- Bolt: 5/8″ x 1-3/8″ x 2-7/8″ with 1-3/8″ throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.
- Cylinder Backset: 31/32″, 1-1/8″, or 1-1/2″ only
- Case: Steel with corrosion-resistant plating, measures 1″ x 6″ x depth. Depth varies by backset.
Attributes
Alternate Codes: 100781, 1851S-310313, 1851S310313, 991672, ADR1851S-310313, MS1851S-310-313, MS1851S310313, TH1101-1/8DUR, TH110118DUR
Backset: 1-1/8″
Bolt Type: Straight Throw Bolt
Category: Glass Aluminum Hardware, Locking Hardware, Lock Sets
Commercial Residential: Commercial
Cylinder Included: Adams Rite
Cylinder Type: Standard Mortise Cylinder
Door Application: Glass Aluminum Hardware
Faceplate Size: 6-7/8″ x 1″
Faceplate Style: Less Strike, Radius
Finish: 313
Finish Code: DBZ
Finish Color: Dark Bronze
Finish : Dark Bronze Anodized Aluminum
Function: Storefront Hook Bolt, Storefront Throw Bolt
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Latch Bolt Throw: 1-3/8″
Latch Bolt Type: Deadbolt
Lock Category: Mortise Lock
Pack Qty: 1
Series: MS1850
Strike Included: No
Subtype: Aluminum Door Deadlocks
Supplier: Adams Rite
Type: GLASS ALUMINUM HARDWARE
Unit of Measure: Each
