Description

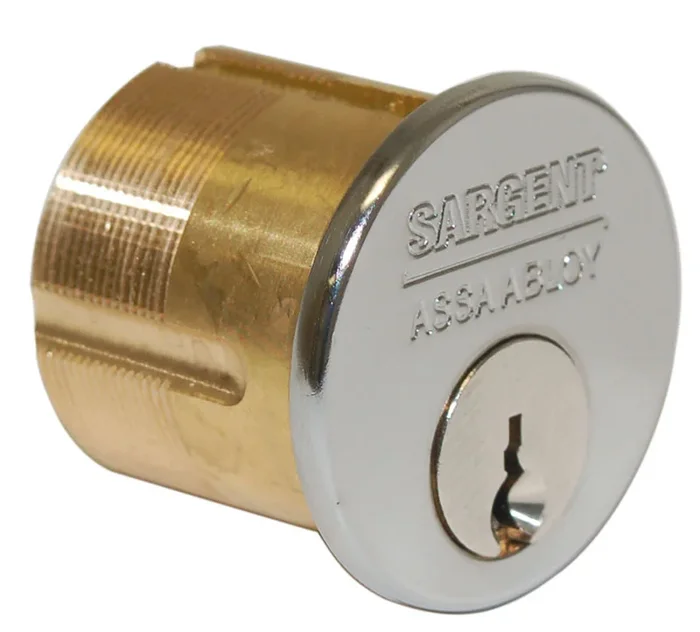

Sargent 41 RB 3 1-1/8″ Mortise Cylinder
Sargent 41 RB 3 1-1/8 Mortise Cylinder offers a reliable and robust locking solution designed for a variety of applications. Constructed from solid brass, this 1-1/8″ mortise cylinder is not only durable but also features a bright brass finish that adds an elegant touch to any door hardware setup. The standard RB keyway ensures compatibility with a wide range of key systems, while the included Sargent offset cam number 13-0664 provides smooth operation. This cylinder comes equipped with a number 97 rosette and a compression spring, enhancing its performance and security. For added versatility, optional collars and spacers can be ordered separately. With lengths available from 1-1/8″ to 3″, the Sargent mortise cylinder caters to diverse installation needs, with a minimum length of 1-1/4″ for 7-pin configurations. Keyed differently and supplied with two cut keys, this product ensures that security is never compromised. Proudly made in the USA, the Sargent 41 RB combines quality craftsmanship with thoughtful design, making it an ideal choice for building professionals and discerning homeowners alike. Elevate your door security with the assurance of Sargent’s trusted performance.
1-1/8 Mortise Cylinder
1-1/8″ Mortise Cylinder, RB Keyway, Bright Brass
Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
SARGENT offers the right Degree of protection for every door.
Attributes
Baa Qualified: Yes
Base Material: Brass
Cam Number: 13-0664
Cam Type: Sargent, Yale
Country of origin: USA
Cylinder Length: 1-1/8 In.
Cylinder Type: Mortise Cylinder
Finish: 605/US3
Keying: Keyed Different
Keys: Cut
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Mortise Cylinders
Ship Weight: 0.53 lbs.
Std Keyway: RB
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- Mortise Cylinders Cut Sheet
