1-1/4 Inch Mortise Cylinder by Corbin Russwin – High Security Door Locking Solution

Description

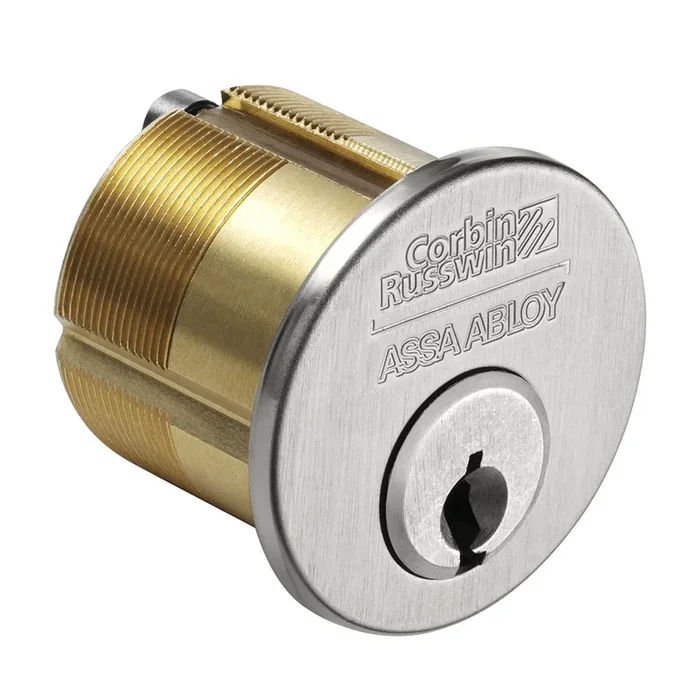

Corbin Russwin 1000-114-A01-7-N8 626 1-1/4″ Mortise Cylinder

Corbin Russwin 1000-114-A01-7-N8 626 1-1/4 Inch Mortise Cylinder offers a robust solution for a variety of mortise cylinder applications. Crafted from solid brass, this durable cylinder ensures long-lasting performance and reliability, making it an ideal choice for both commercial and residential settings. The satin chrome finish not only enhances its aesthetic appeal but also provides added resistance to wear and tear. This cylinder features a 1-1/4 inch length and utilizes the N8 keyway with an A01 Cloverleaf cam, ensuring compatibility with a wide range of locking mechanisms. Designed to accommodate up to 7 pins, it offers a heightened level of security while still allowing for easy installation. The conventional design allows for a full range of keyways suitable for mortise, rim, deadbolt, and component cylinders. With a limited one-year warranty and the assurance of BAA compliance, the Corbin Russwin Mortise Cylinder is a dependable choice for professionals seeking quality and performance. It ships easily via UPS, and with dimensions that accommodate various packaging needs, it’s convenient for any project. Elevate your door security with this reliable mortise cylinder that balances strength, versatility, and style.

1-1/4 Inch Mortise Cylinder

1-1/4 In. Mortise Cylinder, N8 Keyway A01 Cloverleaf Cam, Satin Chrome

Corbin Russwin Mortise Cylinders are made from solid brass and are designed to work in all mortise cylinder applications. They are available in lengths ranging from 1″ to 3-3/4″ and offer a large variety of cams to work in any application. 1″ Cylinders are available 5-Pin only, 1-1/8″ Cylinders are 6-Pin and 7-Pin is available in cylinders 1-1/4 through 3″.

Conventional Cylinders: Full range of keyways for mortise, rim, deadbolt and component cylinders.

Attributes

Baa Qualified: Yes

Base Material: Brass or Bronze

Cam Number: A01

Cam Type: Corbin Russwin Clover

Country of origin: USA

Cylinder Length: 1-1/4 In.

Finish: 626/US26D

Keying: 0 Bitted

Keys: Blank

Limited Warranty: 1 Year

Of Keys: 2

Origin: USA

Pack Height: 2.5″

Pack Height 2: 6″

Pack Length: 4″

Pack Length 2: 16.25″

Pack Qty: 1

Pack Volume: 27.5 in³

Pack Volume 2: 1023.75 in³

Pack Width: 2.75″

Pack Width 2: 10.5″

Pins: 7

Series: Conventional Cylinders

Ship Weight: 0.4 lbs.

Std Keyway: N8

Subtype: Mortise Cylinder

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 32

Resources

• Conventional Cylinders Cut Sheet
• Key Systems Catalog
