1-1/4 Inch Mortise Cylinder by BEST – Durable Door Lock Component

Description

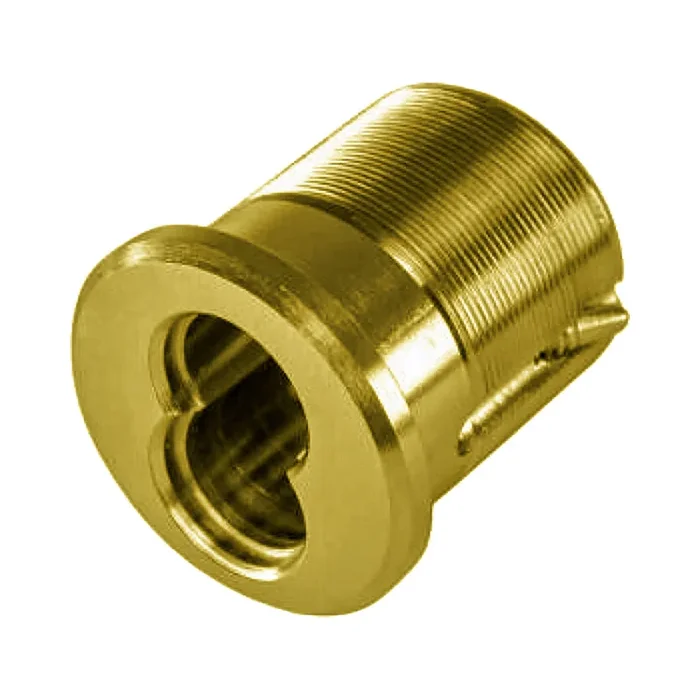

Best 1E74-C127RP3606 1-1/4″ Mortise Cylinder

BEST 1E74-C127RP3606 1-1/4 Inch Mortise Cylinder is designed for standard mortise applications, providing a reliable and secure locking solution. This cylinder features a 7-pin SFIC preparation and is equipped with a C127 straight cam, making it compatible with Arrow latches. Crafted from durable brass, it comes in a satin brass finish (606/US4) that enhances both aesthetics and longevity.One of the standout features of the BEST mortise cylinder is its interchangeable core capability, which allows you to easily integrate it into existing BEST master key systems. For added security, a diagonal set screw is included to ensure the cylinder is firmly held in place within the housing. This unit is intended for commercial use and is designed to fit doors with a thickness ranging from 1-7/8″ to 2-1/2″. With a limited warranty of 3 years, you can trust the quality and performance of this product. The compact dimensions, including a pack volume of 8.8 in³ and a weight of just 0.35 lbs, make installation straightforward. Elevate your locking systems with the reliability and style of the BEST 1E74-C127RP3606 Mortise Cylinder, a perfect choice for professionals seeking quality and functionality.

1-1/4 Inch Mortise Cylinder

Standard 1-1/4″ Mortise Cylinder, 7-Pin SFIC Prep Less Core, C127 Straight Cam, For Use With Arrow Latch, Satin Brass Finish

Standard mortise applications require use of BEST’s 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.

BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.

Attributes

Manufacturer surcharge: 7.0%

Baa Qualified: Yes

Base Material: Brass

Cam Number: C127

Cam Type: Straight

Commercial Residential: Commercial

Country of origin: USA

Cylinder Length: 1-1/4″

Cylinder Type: 7-Pin SFIC Prep Less Core

Door Thickness: 1-7/8″ to 2-1/2″

Finish: 606/US4

Finish Family: Matte Brass

For Use With: Arrow Latch

Function: Standard

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Options: Standard 1E-R2/1E-R5 Ring Package

Origin: USA

Pack Height: 1.75″

Pack Height 2: 3.25″

Pack Length: 2.88″

Pack Length 2: 9.5″

Pack Qty: 1

Pack Volume: 8.8 in³

Pack Volume 2: 254.72 in³

Pack Width: 1.75″

Pack Width 2: 8.25″

Pins: 7

Series: E Series Cylinders

Ship Weight: 0.35 lbs.

Subtype: Mortise Cylinder

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 20

Resources

• Cylinders – E Series Catalog
• E Series Cylinders Cut Sheet
• E Series Service Manual
• Installation Instructions for 1E Mortise Cylinders
• Installation Instructions for 1E Rim Cylinders
• Installation Instructions for 1E7R4 Turn Knob Cylinders
