Description

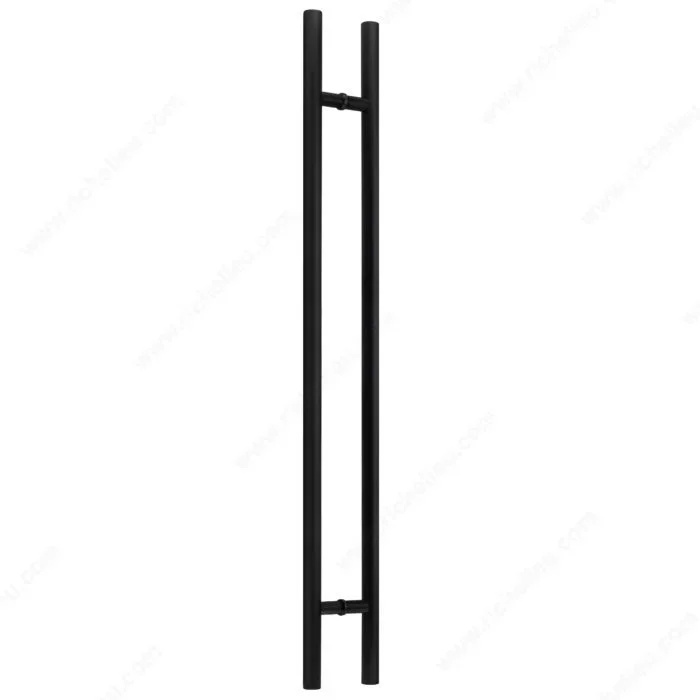

Richelieu 701DH2R10348900 1 1/4″ Back-to-Back Ladder Handle – 32 mm Diameter
Richelieu 701DH2R10348900 1 1/4″ (32 mm) Diameter Back-to-Back Ladder Handle seamlessly combines functionality and modern design. Crafted from durable Stainless Steel 316, this handle is built to withstand the rigors of both residential and commercial environments. Its matte black finish not only adds a contemporary touch but also ensures resistance against corrosion and wear, making it an excellent choice for any sliding or hinge door application. Designed with a generous height of 48 inches, this back-to-back pull handle provides a comfortable grip, whether installed on glass, wood, or architectural doors. The handle accommodates door thicknesses ranging from 1 3/8 to 1 31/932 inches, and is compatible with glass thicknesses between 5/16 to 15/32 inches. With a center-to-center drilling spacing of 36 inches, installation is straightforward, especially with the included M8 screws. The 2 27/32 inch projection ensures ample space for hand clearance, enhancing usability. This product is perfect for those who value both aesthetics and practicality in their hardware choices. Remember to follow installation guidelines to ensure optimal performance and longevity. The Richelieu 701DH2R10348900 is the ideal finishing touch to elevate your space.
1 1/4″ (32 mm) Diameter Back-to-Back Ladder Handle
null
Important information
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may not in any case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material. Never exceed the maximum load or size recommended by the manufacturer. Never use a spray lubricant on this product. Clean with a soft cloth and soap that is ammonia-free and nonabrasive. Always use a dry cloth to remove debris, dust and residues (sawdust and/or aluminum dust) from rails before installing hangers.
Attributes
Center to Center Drilling ( Spacing): 36 in
Color/ Finish: Matte Black
Diameter: 32 mm
Door Thickness: 35 to 50 mm
Door Type: Glass, Wood, Architectural
Function: Pull Handle
Glass Thickness: 10 to 12 mm
Height: 48 in
Manufacturing Material: Stainless Steel: 316
Material: Stainless Steel: 316
Milling Diameter: 16 mm
Product #: 701DH2R10348900
Product number: 701DH2R10348900
Product №: 701DH2R10348900
Projection: 3.22 in
Screw/ Nail: Included / M6
Type: Round
Unit: Set
Unit 1: case – 10
Unit 2: case – 5
Usage: Sliding Door / Hinge Door
Washers Diameter: 32 mm
Resources
- Installation
- Line art
