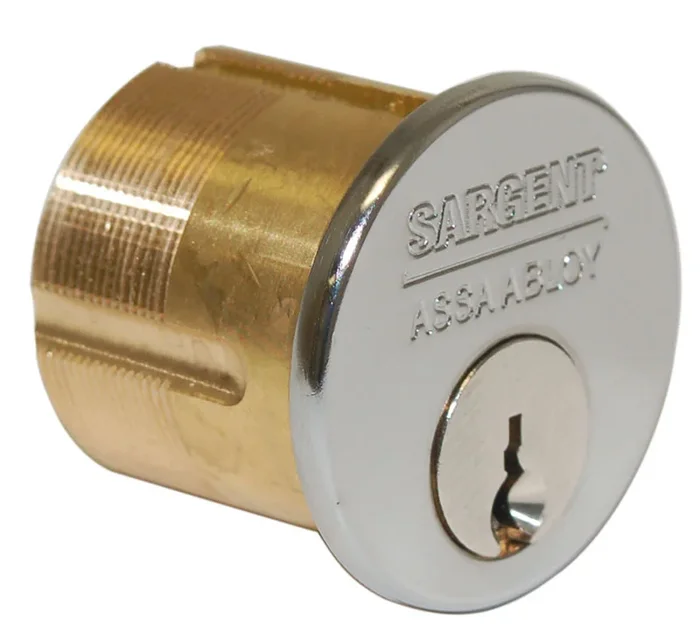

Sargent 44 CA 32D 1-1/2″ Mortise Cylinder
Sargent 44 CA 32D 1-1/2 Mortise Cylinder offers a robust security solution crafted from high-quality materials. This 1-1/2-inch mortise cylinder features a CA keyway and comes in a sleek satin stainless steel finish, ensuring both durability and aesthetic appeal. Designed to integrate seamlessly into various door hardware setups, this cylinder is furnished with a standard number 97 rosette and a compression spring for reliable performance. The Sargent mortise cylinder is available in lengths ranging from 1-1/8″ to 3″, with a minimum length of 1-1/4″ for the 7-pin configuration. It is equipped with a standard Sargent offset cam number 13-0664, although additional cam options are available to meet specific needs. This model is keying different and includes two cut keys, enhancing security while providing flexibility for various applications. Ideal for building professionals and knowledgeable homeowners alike, the Sargent 44 CA 32D ensures peace of mind with its robust design and reliable functionality. Manufactured in the USA, this mortise cylinder exemplifies SARGENT’s commitment to quality and security, making it an essential choice for any door requiring dependable access control.
1-1/2 Mortise Cylinder
1-1/2″ Mortise Cylinder, CA Keyway, Satin Stainless Steel
Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.
SARGENT offers the right Degree of protection for every door.
Attributes
Baa Qualified: Yes
Base Material: Stainless Steel
Cam Number: 13-0664
Cam Type: Sargent, Yale
Country of origin: USA
Cylinder Length: 1-1/2 In.
Cylinder Type: Mortise Cylinder
Finish: 630/US32D
Keying: Keyed Different
Keys: Cut
Of Keys: 2
Origin: USA
Pack Height: 1.88″
Pack Length: 4.13″
Pack Qty: 1
Pack Volume: 18.37 in³
Pack Width: 2.38″
Pins: 6
Series: Mortise Cylinders
Ship Weight: 0.57 lbs.
Std Keyway: CA
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- Mortise Cylinders Cut Sheet
