03A Electric Lock/Unlock Mortise Lock – Schlage Lock Company

Description

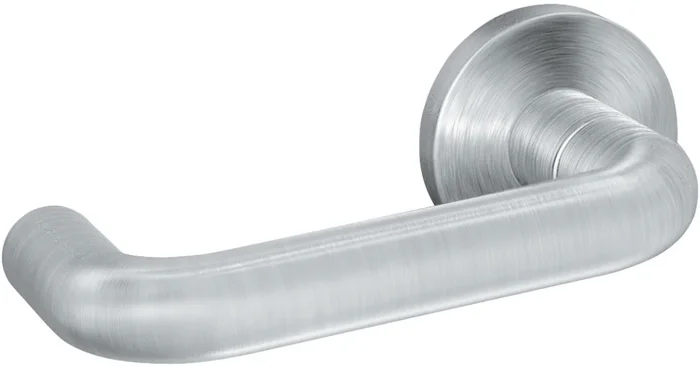

Schlage L9092EUP03A625 Lock Electric Mortise Lock

Electrically locking/unlocking outside lever, Outside cylinder (replaces L9080EL/EU) Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside free

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
• Backset: 2-3/4″ (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
• Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: L9092EUP03A625

Amp Draw: 400mA

Backset: 2-3/4″

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Bolt Protection: 3/4 In.

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Commercial Residential: Commercial

Cylinder Included: Yes

Cylinder Type: 6-Pin Cylinder, Full Face Cylinder

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Bore Size: 2-1/8″

Door Thickness: 1-3/4 In.

Door Thickness Min: 1-3/4″

Dust Box: Plastic

Finish: Bright Chrome

Finish Code: 625

Finish Color: Bright Chrome

Finish : Bright Chromium Plated

Finish Family: Polished Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9092EU-Fail Secure

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Included

Keyway: Everest 29

Knob/ Lever Design: 03

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8″ x 1-1/4″

Latch Bolt Throw: 3/4″

Latch Bolt Type: Deadlatch

Lever Design: 3

Lever Knob Design: 03 – Lever

Leverknob Design: 03 Lever

Limited Warranty: 1 Year

Lock Category: Mortise Lock

Lock Face Size: 8 In. x 1-1/4 in.

Num Keys: 2

Num Pins: 6

Of Keys: 2

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Pins: 6

Power: Hard Wired

Restricted Keyway: No

Rose Escutcheon Design: A – Rose

Rose/ Escutcheon: A Rose

Rose/ Escutcheon Size: 2-1/8″

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: A Rose

Screws: Combination

Series: L Series

Std Keyway: C

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Strike Height: 4-7/8 In.

Strike Number: 10-072

Strike Size: 4-7/8″ x 1-1/4″

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Electric Mortise Lock

Supplier: Schlage

Switch Type: None

Type: LOCK SETS

Unit of Measure: Each

Voltage: 12V DC, 24V DC
